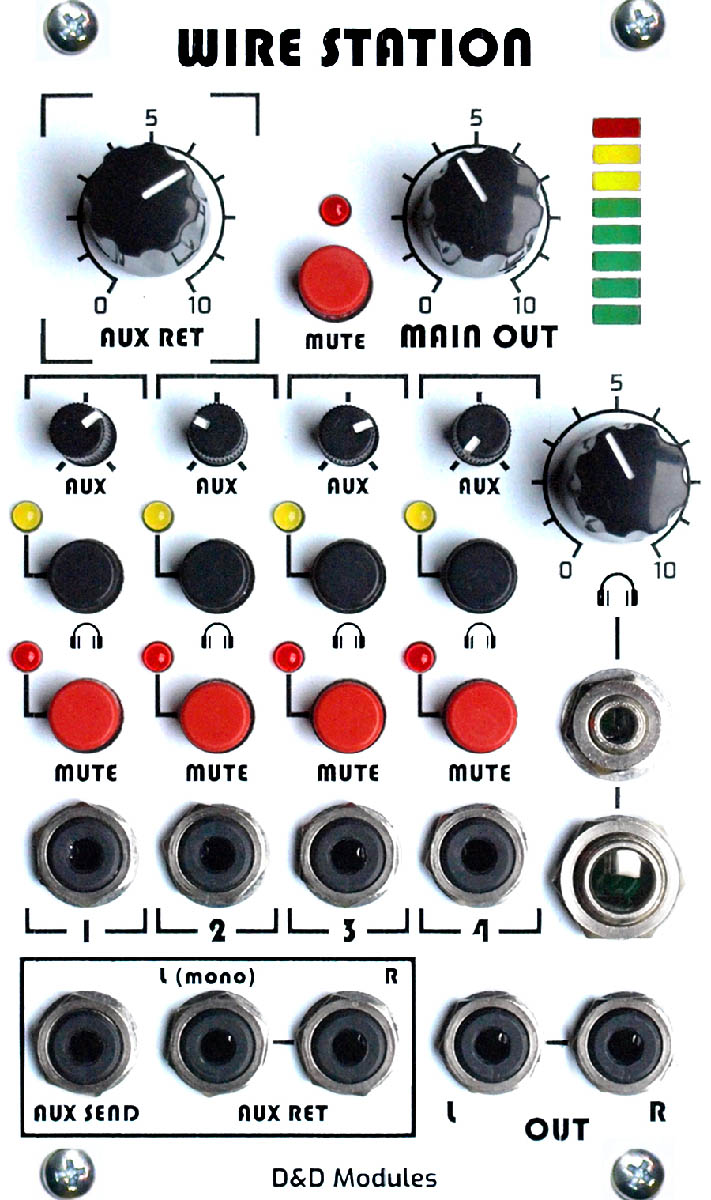

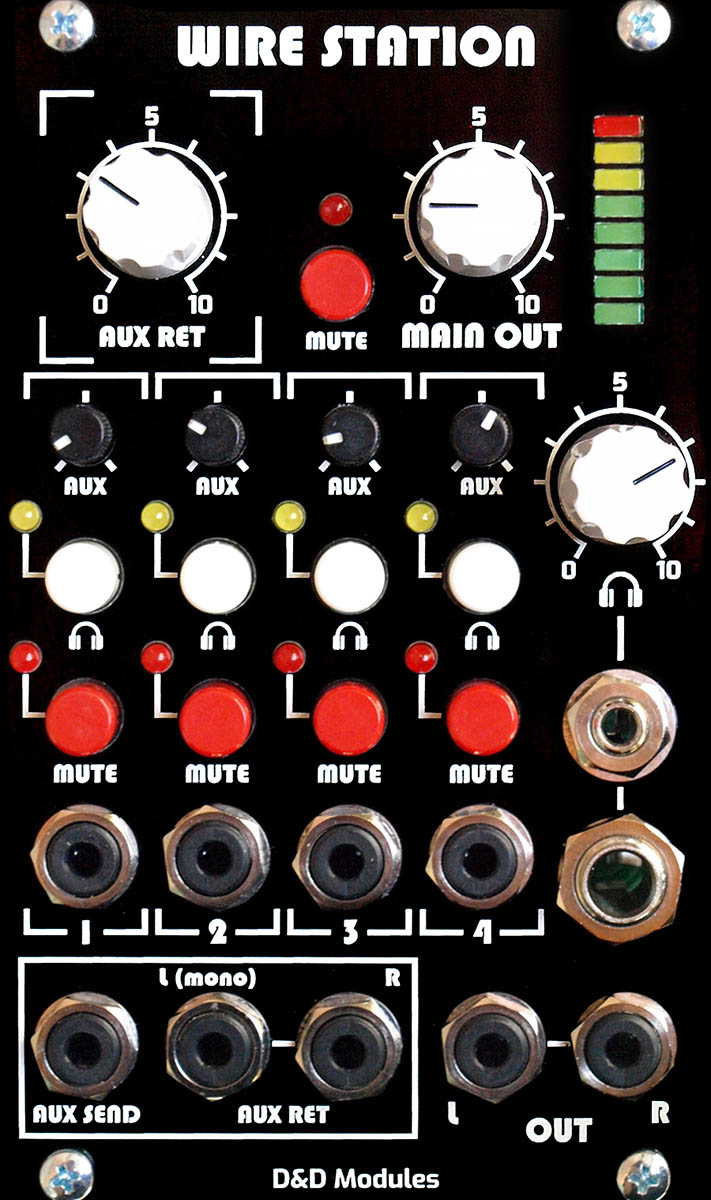

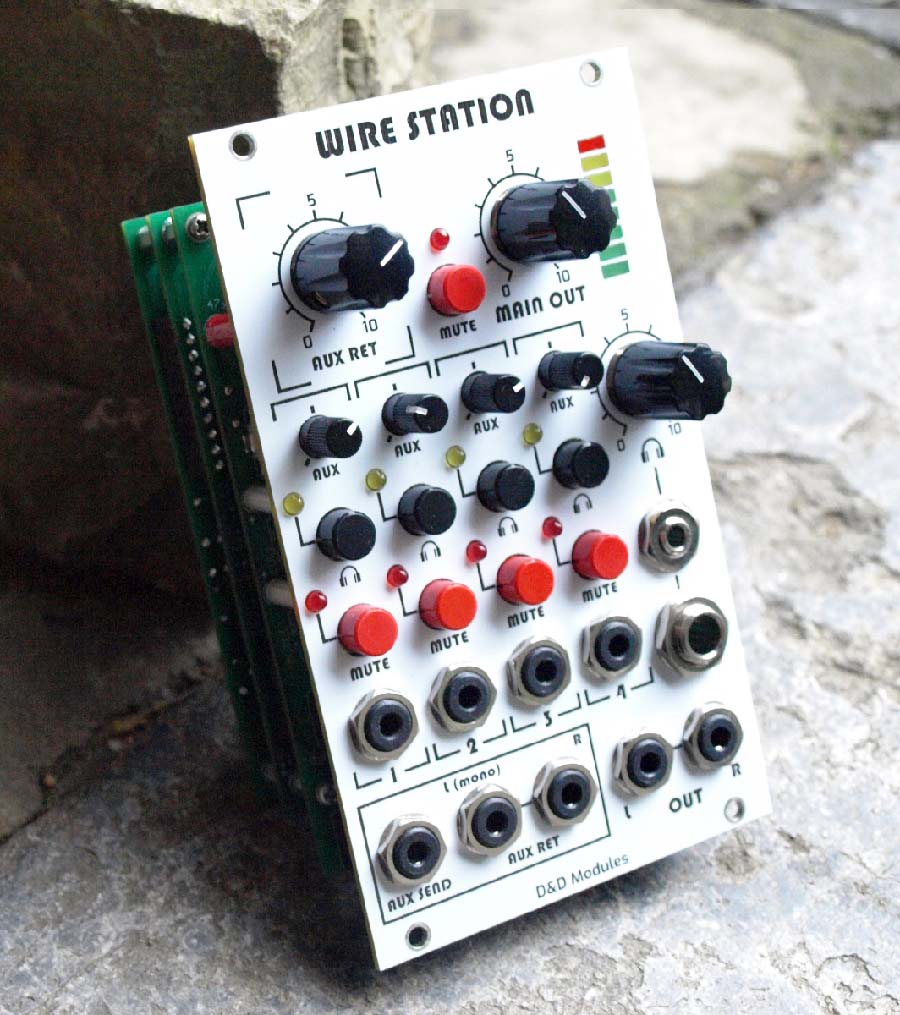

Wire Station

   4 x Inputs mixing desk / Stereo Aux / Headphones amp

   - 4 x mono inputs, each one has :
           - a "mute"
           - a "cue" function to monitor it in the headphones
           - an "auxiliary send" with a level control.
   - Aux send bus and stereo return with dedicated level control
   - Main out level control and mute function.
   - Stereo output
   - Bargraph Vu Meter
   - 1.5W High Fidelity Headphone Amplifier with dedicated level control - 6.35mm and 3.5mm connectors


   The Wire Station is the ideal eurorack mixing desk for studio and live performance.

   The Main output can be muted when the tracks are monitored in the headphones.

   One individual track can be muted at the output while it is monitored in the headphones : when the user is happy with it, it can be unmutted and released in the main out !

   A stereo FX can be used. Of course mono effects can also be used (then the effect's output must be plugged into "Aux Ret Left" Input)

    More detailed information on : ModularGrid


- Width : 15HP
- Power consumption :
     +12V > 160mA max / 95mA typical
     -12V > 180mA max / 115mA typical


Price : 240,00 € excl. vat
288,00 € incl. vat
(VAT applicable for EU countries)

Shipping →
France, Belgium, Germany, Netherlands, Luxembourg : 20€ (excl. vat)
Europe, USA, Mediterranean Basin : 36€
World : 69€
(Contact us for Mondial Relay
or any other shipping option)




Ordering :
  ddmodules@gmail.com
