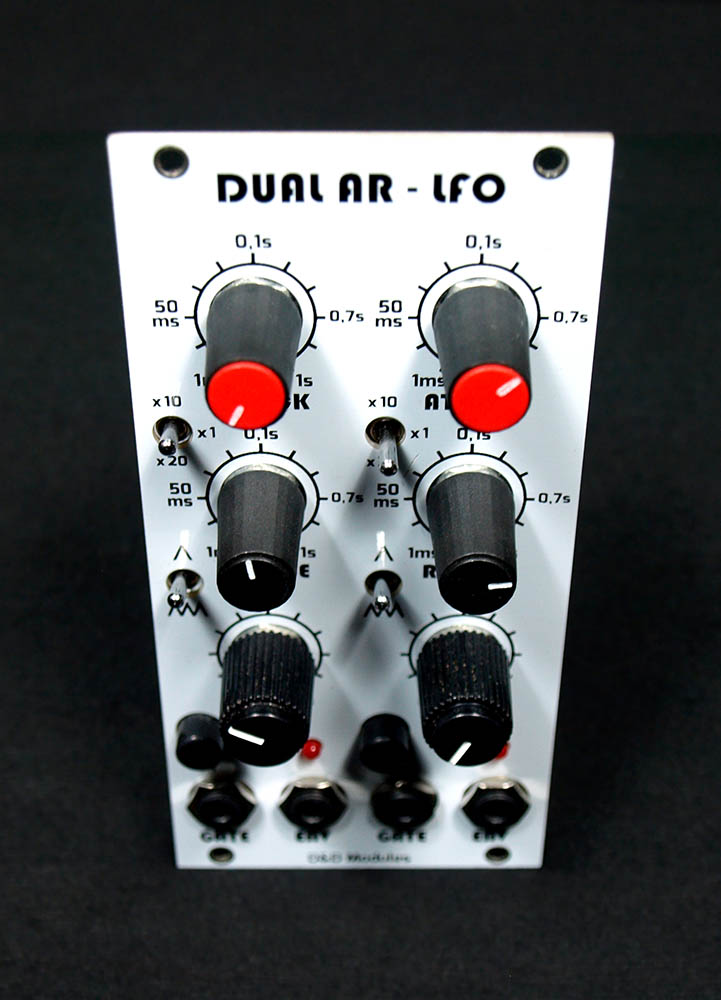

Dual AR envelope generator with a "loop" mode.
Attack and release times go from 1ms to 1s, they can be multiplied by factors of 10 or 20.
This envelope can be looped, so we can have an LFO going from 0V to almost 12V with an adjustable rising and falling ramp, plus a level control.
If the envelope is trigged by a pulse AND in the "loop" mode, awesome rhythmic movements can be obtained, indeed when the gate signal falls, the envelope enters a loop untill the gate is on again.
Manual trig push buttons are provided.
More detailed information on : ModularGrid
- Width : 12HP
- Power consumption :
+12V > 36mA
-12V > 21mA
Price : 170,00 € excl. vat
204,00 € incl. vat
(VAT applicable for EU countries)
EU : 20€ excl. vat
24€ incl. vat
World : 29€
