4x3 passive splitter.
If nothing is plugged into the first "B" input, "A" becomes a 1x6 multiple. In the same way, if nothing is plugged into the first "D" input, "C" becomes a 1x6 multiple.
"A" and "C" can be linked to the internal control signals GATE and CV of the Doepfer system bus with a jumper inside the module, or can be left unconnected and simply be used as standard multiples.

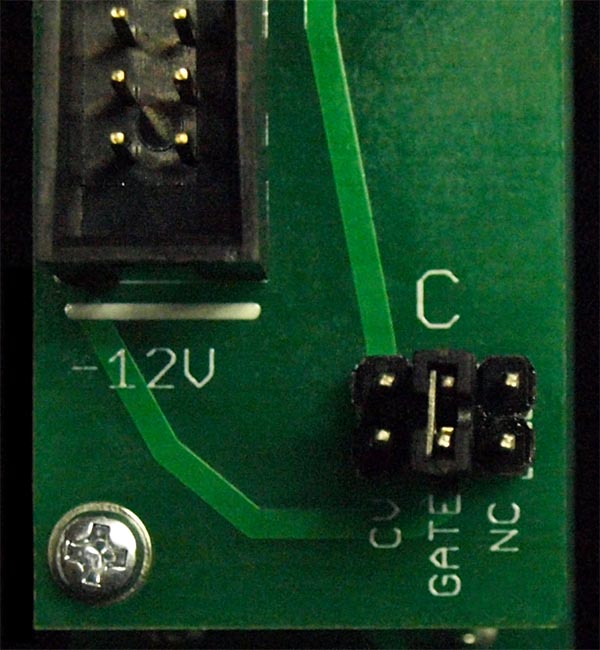

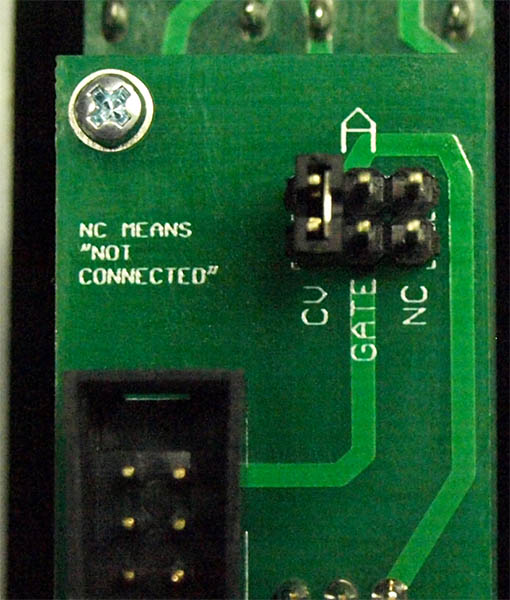

If you want to connect a block to the CV Doepfer bus put the jumper on the "CV" position, if you want to connect a block to the GATE Doepfer bus put the jumper on the "GATE" position, if you don't want a block to be connected to anything internally just put the jumper on the "NC" position (NC = "Not Connected").
More detailed information on : ModularGrid
- Width : 5HP
- Power consumption :
+12V > 0mA
-12V > 0mA
Price : 60,00 € excl. vat
72,00 € incl. vat
(VAT applicable for EU countries)
